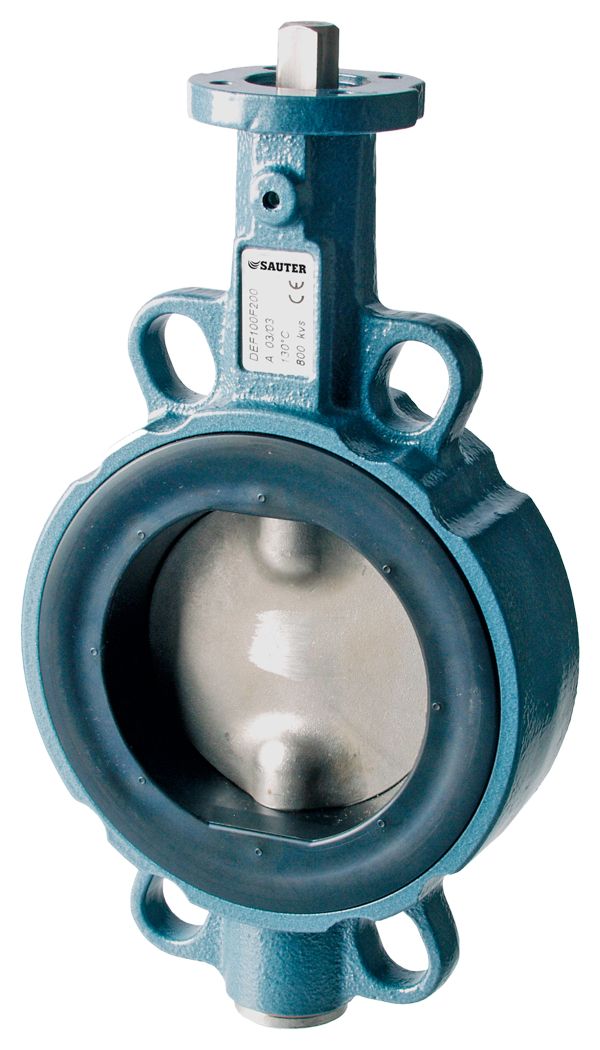

Tight-sealing butterfly valve, PN 16
DEF
How energy efficiency is improved
Intelligent collar design for working without loss through leakage
Funkce
-
For cutting off and regulating water and low-pressure steam up to 110 °C
-
Butterfly valve with 3-way brass bearing bush as spindle bearing
-
Fits PN 6, PN 10 and PN 16 flanges
-
Can be combined with the ADM 322(S), ADM 333SF/HF, ASM 124(S), 134(S) and ASF 122, 123(S) actuators with spring return
-
Damper body made of grey cast iron
-
Collar made of ethylene-propylene rubber
-
Butterfly disc made of stainless steel
-
Spindle made of stainless steel with two O-rings
