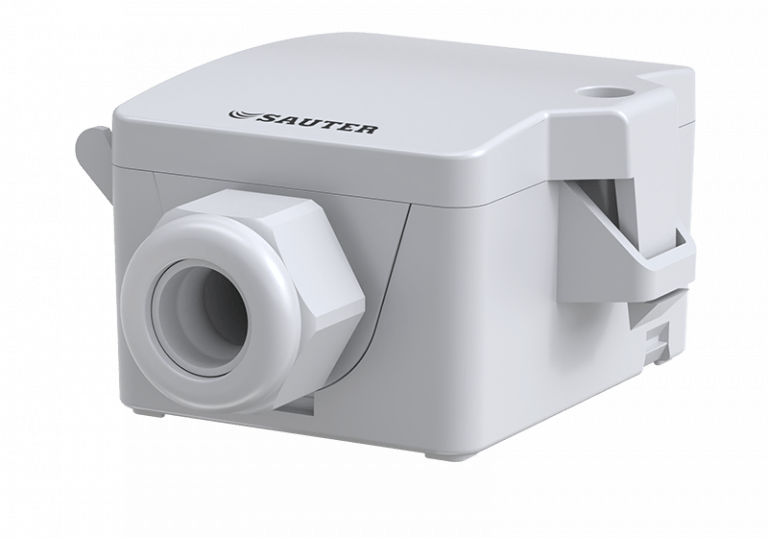

Outdoor-temperature sensor
EGT 301
How energy efficiency is improved
Precise and reliable data acquisition for optimised heating and cooling in HVAC installations
Funkce
-
Passive air temperature measurement
-
Suitable for weather-dependent heating and ventilation systems
-
Cable inlet via a removable cable gland
-
Suitable for surface or wall mounting
-
Mounting base thermally separated from the wall by spacers on the rear
-
Mounting set and mounting base included
-
Sensor with protection against corrosion and humidity
-
Can be used in damp and dusty environments (type of protection IP65)
Datové listy
Pokyny pro montáž
Další dokumenty
Brožury
EGT 301: Outdoor temperatur sensor
pdf : 679 KB
pdf
MV EGT301F103
pdf : 1008 KB
pdf
Richtlinie Fühlermontage
pdf : 9 MB
pdf
Flyer 2-Point Controllers and Sensors
pdf : 1 MB
pdf
