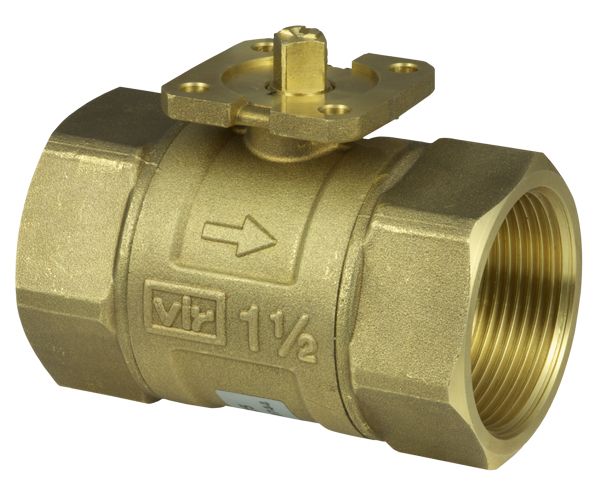

2-way regulating ball valve with female thread, PN 40

VKR

2-way regulating ball valve with female thread, PN 40

How energy efficiency is improved

Efficiency means precise control and working with minimum leakage


Funkce

  • 2-way regulating ball valve for continuous control of cold and hot water in closed circuits

  • In combination with valve actuators AKM 105(S), 115(S) and AKF 112, 113(S) as a control unit

  • Equal-percentage ball valve characteristic; control contour integrated directly in the ball

  • Characteristic can be set with SUT rotary actuator (SAUTER Universal Technology) to linear or quadratic

  • Spindle with large sliding surface and PTFE glide ring

  • Low torque due to collar mounted on O-ring

  • Ball valve with female thread as per ISO 7/1 Rp or NPT

  • Body made of DZR (dezincification-resistant) cast brass

  • Spindle made of DZR brass with PTFE glide ring

  • Ball made of DZR brass, chrome-plated and polished surface

  • Spindle seal with double O-ring made of EPDM

  • Strainer and screw fitting available as accessories

  • Water quality as per VDI 2035

  • French drinking water approval ACS

Hledání produktu
Typy
VKR015F300-FF
2-way control ball valvePN40, DN15, kvs10, 90°
VKR015F300-UU
2-way control ball valvePN40, DN15, kvs10, 90°
VKR015F310-FF
2-way control ball valvePN40, DN15, kvs6.3, 90°
VKR015F310-UU
2-way control ball valvePN40, DN15, kvs6.3, 90°
VKR015F320-FF
2-way control ball valvePN40, DN15, kvs4, 90°
VKR015F320-UU
2-way control ball valvePN40, DN15, kvs4, 90°
VKR015F330-FF
2-way control ball valvePN40, DN15, kvs2.5, 90°
VKR015F330-UU
2-way control ball valvePN40, DN15, kvs2.5, 90°
VKR015F340-FF
2-way control ball valvePN40, DN15, kvs1.6, 90°
VKR015F340-UU
2-way control ball valvePN40, DN15, kvs1.6, 90°
VKR015F350-FF
2-way control ball valvePN40, DN15, kvs1.0, 90°
VKR015F350-UU
2-way control ball valvePN40, DN15, kvs1.0, 90°
VKR020F300-FF
2-way control ball valvePN40, DN20, kvs10, 90°
VKR020F300-UU
2-way control ball valvePN40, DN20, kvs10, 90°
VKR020F310-FF
2-way control ball valvePN40, DN20, kvs6.3, 90°
VKR020F310-UU
2-way control ball valvePN40, DN20, kvs6.3, 90°
VKR020F320-FF
2-way control ball valvePN40, DN20, kvs4, 90°
VKR020F320-UU
2-way control ball valvePN40, DN20, kvs4, 90°
VKR025F300-FF
2-way control ball valvePN40, DN25, kvs16, 90°
VKR025F300-UU
2-way control ball valvePN40, DN25, kvs16, 90°
VKR025F310-FF
2-way control ball valvePN40, DN25, kvs10, 90°
VKR025F310-UU
2-way control ball valvePN40, DN25, kvs10, 90°
VKR025F320-FF
2-way control ball valvePN40, DN25, kvs6.3, 90°
VKR025F320-UU
2-way control ball valvePN40, DN25, kvs6.3, 90°
VKR032F300-FF
2-way control ball valvePN40, DN32, kvs25, 90°
VKR032F300-UU
2-way control ball valvePN40, DN32, kvs25, 90°
VKR032F310-FF
2-way control ball valvePN40, DN32, kvs16, 90°
VKR032F310-UU
2-way control ball valvePN40, DN32, kvs16, 90°
VKR032F320-FF
2-way control ball valvePN40, DN32, kvs10, 90°
VKR032F320-UU
2-way control ball valvePN40, DN32, kvs10, 90°
VKR040F300-FF
2-way control ball valvePN40, DN40, kvs40, 90°
VKR040F310-FF
2-way control ball valvePN40, DN40, kvs25, 90°
VKR040F310-UU
2-way control ball valvePN40, DN40, kvs25, 90°
VKR040F320-FF
2-way control ball valvePN40, DN40, kvs16, 90°
VKR040F320-UU
2-way control ball valvePN40, DN40, kvs16, 90°
VKR050F300-FF
2-way control ball valvePN40, DN50, kvs63, 90°
VKR050F300-UU
2-way control ball valvePN40, DN50, kvs63, 90°
VKR050F310-FF
2-way control ball valvePN40, DN50, kvs40, 90°
VKR050F310-UU
2-way control ball valvePN40, DN50, kvs40, 90°
VKR050F320-FF
2-way control ball valvePN40, DN50, kvs25, 90°
VKR050F320-UU
2-way control ball valvePN40, DN50, kvs25, 90°
