SAUTER NRT300: Heating and cooling with just one actuator

1 February 2018 | media releases

SAUTER NRT300: Heating and cooling with just one actuator

The new SAUTER equiflex NRT300 air-conditioning controller adds even more new facets to the world of room-temperature control. This flexible all-rounder can handle many applications, for both single-room and zone control. 01

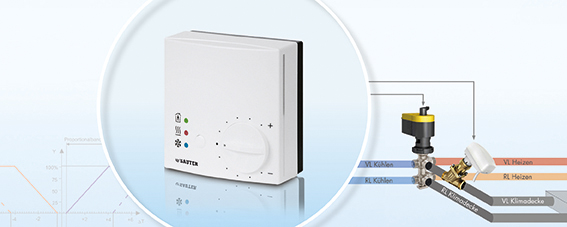

Perfect combination with the 6-way ball valve

Perfectly coordinated with the 6-way ball valve, it is a compact, precise solution for controlling heated and chilled ceilings, VAV systems and fan coils in 4-pipe systems, and is ideally suited to control and change-over operations.

The NRT300 covers two important applications. In the first case, it controls via the 6-way ball valve and changes over between the heating and cooling modes. In the second case, the 6-way ball valve works in change-over mode and the required flow rates are controlled in an energy-efficient manner by the pressure-independent multi-function valve.

Everything under control

The new NRT300 is an optimally coordinated room controller with many setting options. It has a push-button for the specific change-over between the normal and set-back modes. The room controller also has inputs for the change-over between the cooling and heating modes, for the normal/set-back mode or window contacts, for dew point monitoring and for shifting the setpoint. The heating/cooling mode and the normal mode are indicated by an LED.

The complete solution

Together with the pressure-independent SAUTER Valveco Compact multi-function valve and the SAUTER 6-way ball valve it makes up an unbeatable team for reliable planning, easy installation and energy efficiency. »

Download press release

As the leading provider of solutions for building automation technology in Green Buildings, SAUTER ensures good climate conditions and a sense of well-being in sustainable environments. SAUTER is a specialist in developing, producing and marketing products and systems for energy-efficient total solutions, and offers a comprehensive range of services to ensure the energy-optimised operation of buildings. Our products, solutions and services enable high energy efficiency throughout the entire life-cycle of a building – from planning and construction through to operation – in office and administrative buildings, research and educational facilities, hospitals, industrial buildings and laboratories, airports, leisure facilities, hotels and data centres. With over 100 years’ experience and a track record of technological expertise, SAUTER is a proven system integrator that stands for continuous innovation and Swiss quality. SAUTER provides users and operators with an overview of energy flows and consumption, and therefore of the development of the costs involved.

The SAUTER Group

  • Company active worldwide with headquarters in Basel, Switzerland Founded
  • in 1910, it is built on more than 100 years of tradition and experience
  • With more than 2,300 employees, it is present and active globally
  • Complete building management solutions from a single source. Focus: maximum energy efficiency and sustainability
  • Investment protection and operational reliability over the entire building life-cycle Technology leader in the building automation and system integration sector
  • Member of eu.bac, BACnet Interest Group (BIG-EU), BACnet International, EnOcean Alliance References from renowned clients at www.sauter-controls.com
